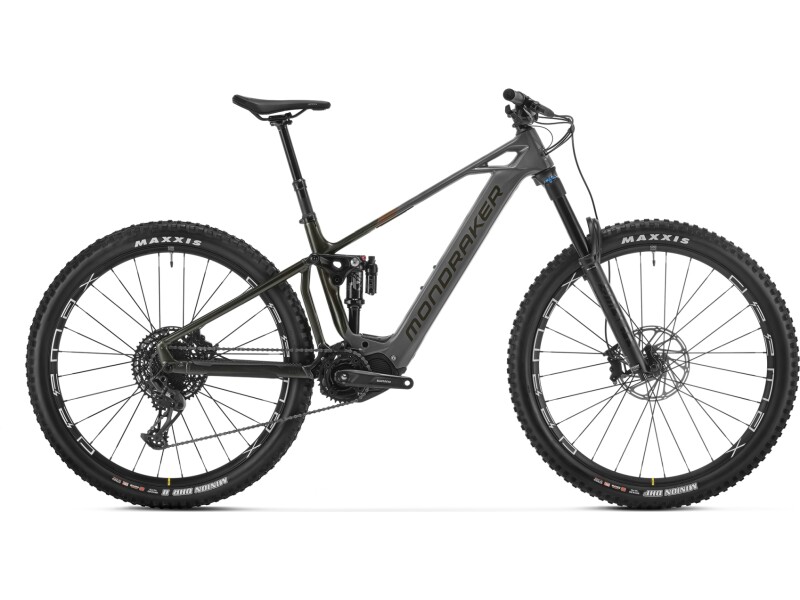

Mondraker CRUSHER

Name: Mondraker CRUSHER
Brand: Mondraker
Price: 5699.00 EUR
Availability: InStock

ab 5699,⁰⁰ €

Ausführung wählen:

M (420mm)
Farbe: Gray/Bronze Bei 1 Händler verfügbar 6999,00 € XL (490mm)
Farbe: Gray/Bronze Bei 1 Händler verfügbar 5699,00 €

Zu den Spezifikationen

Das Mondraker CRUSHER ist verfügbar bei: 1 Shops

Dein Standort: DE Standort auswählen

GTIN 8435392879484 ArtNr. 010.24364

Spezifikationen

Rahmen

Rahmen: Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, Optimized Zero Suspension System, integrated internal non-removable battery

Gabel / Dämpfer

Gabel: Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload Dämpfer: Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings - medium compression, medium rebound, air volume spacer 0.2

Schaltung

Schaltung: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 - Mondraker M068 Schalthebel: Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click

Bremsen

Bremse vorne: Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Bremse hinten: Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Bremshebel: Sram DB8, tool reach adjust, lever pivot bushings

Laufräder

Felgen: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes Reifen vorne: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead Reifen hinten: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead Nabe vorne: Mavic, Boost 15x110mm, IS 6 bolts Nabe hinten: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub Speichen: Mavic J-bend double butted, contactless lacing

Cockpit

Lenker: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore Vorbau: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore Steuersatz: Acros AZF-601 R1 Block Lock 120°, ZS44/28.6 top, ZS56/40 bottom Griffe: Onoff Desert, 1lock-on, 135mm

Sattel

Sattel: FIZIK Terra Aidon X5 145mm Sattelstütze: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

Antrieb

Kurbelsatz: Shimano Steps FC-EM600 ebike, 165mm Antrieb: Sram SX Eagle, 12s, Powerlock Zahnkranz: Sram PG-1210, 11-50T, 12s

Motor
