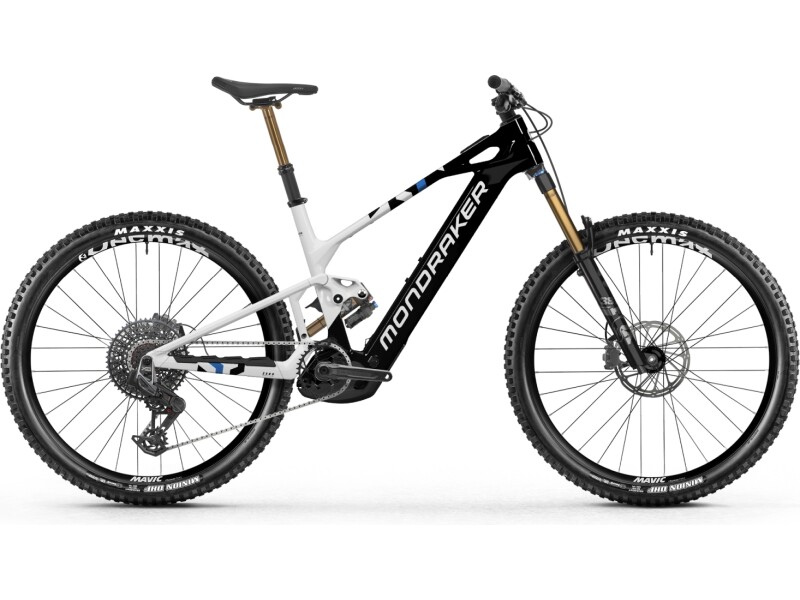

Mondraker CRAFTY CARBON RR S

9499,⁰⁰ €

Ausführung wählen:

M (410mm)
Farbe: Black/Blue/White Bei 1 Händler verfügbar 9499,00 €

Zu den Spezifikationen

Das Mondraker CRAFTY CARBON RR S ist verfügbar bei: 1 Shops

Dein Standort: DE Standort auswählen

GTIN 8435392893176 ArtNr. 010.25357

Spezifikationen

Rahmen

Rahmen: Crafty Stealth Air full Carbon, Updated Zero Suspension System, Forward Geometry, internal removable battery

Gabel / Dämpfer

Gabel: Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload Dämpfer: Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings - CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer

Schaltung

Schaltung: Sram X0 Eagle AXS, T-Type, 12s Schalthebel: Sram Eagle AXS Pod MMX, 12s

Bremsen

Bremse vorne: Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Bremse hinten: Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Bremshebel: Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust

Laufräder

Felgen: Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes Reifen vorne: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead Reifen hinten: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead Nabe vorne: Mavic, Boost 15x110mm, IS 6 bolts Nabe hinten: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub Speichen: Mavic straight-pull double butted, contactless lacing

Cockpit

Lenker: Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. Vorbau: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore Steuersatz: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock Griffe: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Sattel

Sattel: Ergon SM-10 Sattelstütze: Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 155mm -180mm, XL size: 185mm -210mm

Antrieb

Kurbelsatz: Race Face Aeffect-R ebike, 160mm Antrieb: Sram GX Eagle T-Type, 12s, Powerlock Zahnkranz: Sram XS-1295, 10-52T, T-Type, 12s

Motor

Motor: New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y) Akku: Bosch Powertube 600Wh Akku-Kapazität (Wh): 600 Display: Purion 400 / Bosch Mini Remote / Bosch System Controller

Allgemein

Gewicht (kg): 22,80
